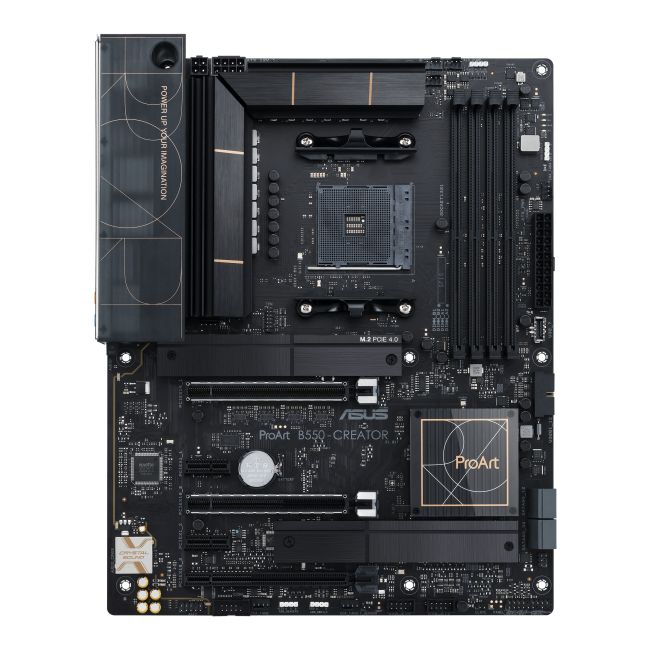

ASUS ProArt B550-CREATOR AMD B550 Socket AM4 ATX

ATX, AMD B550 chipset, Socket AM4, 4xDDR4 DIMM slots, 7.1ch audio, 2.5-Gigabit LAN, UEFI AMI BIOS
In stock

The ProArt B550-Creator motherboard equips creative professionals with powerful hardware and software tools to accelerate their workflows. Featuring comprehensive, efficient cooling and lightning-fast connectivity, this board maximizes the computing power of the latest AMD Ryzen processors to let you create faster and get more done. Combined with a stylish design, advanced security features and the trusted stability and reliability ASUS motherboards are known for, ProArt B550-Creator perfects the art of performance to empower your creative flow.

Lightning-Speed Connectivity A comprehensive array of powerful I/O ports ΓÇö including two ThunderboltΓäó 4 ports, two 2.5G Ethernet and four USB 3.2 Gen 2 ports ΓÇö enables quick data transfers and extensive storage options with flexible, hassle-free connectivity.

Dual Thunderbolt™ 4 Type-C® Each Thunderbolt™ 4 port delivers up to 40 Gbps of bidirectional bandwidth for the latest high-speed devices and drives. Thunderbolt 4 also supports up to two external 4K displays and extends PCIe bandwidth to up to 32 Gbps. Dual

2.5G Ethernet Experience faster data transfers and high-res video streaming with two Intel 2.5G Ethernet (I225-V) ports. ProArt B550-Creator also features CreationFirst, exclusive network optimization software that allocates more bandwidth to speed up essential apps for your work.

Unthrottled Performance ProArt B550-Creator provides robust power delivery and comprehensive cooling to handle the latest AMD RyzenΓäó processors. It also supports PCIe 4.0, providing everything you need for the most demanding multithreaded tasks like 3D or video rendering and software compiling.

Robust Power Design ProArt B550-Creator provides robust power delivery to handle the full power of latest Ryzen processors and improve overall system stability.

Teamed Power Stages 12+2 power stages combine high-side and low-side MOSFETs and drivers into a single package, delivering the power and efficiency that the latest AMD Ryzen processors demand.

Digi+ Power Control The ASUS Digi+ voltage-regulator module (VRM) is one of the finest in the industry and ensures ultra-smooth power delivery to the CPU.

ProCool II Power Connector The ProCool socket is built to exacting specifications to ensure flush contact with the PSU power lines, enabling lower impedance and better heat dissipation.

Choke & Capacitor Superior alloy chokes and durable capacitors are engineered to resist extreme temperatures, providing a higher level of performance than the industry standard.

6-Layer PCB The 6-layer PCB quickly dissipates heat around the VRM to improve overall system stability and give the CPU more overclocking headroom.

Cool to the Core The VRM and M.2 heatsink designs ensure effective cooling of the CPU and SSD to ensure system stability and fast storage performance for seamless content creation workflows.

VRM Heatsink & Thermal Pad Large, high-mass heatsinks with an extensive surface area along with high-quality thermal pads help transfer heat from VRM and choke areas to improve heat dissipation.

M.2 Heatsink Both M.2 drives sit under a passive heatsink to ward off the throttling that can occur with sustained transfers.

Stack Cool 3+ Layers of 2-ounce copper draw heat away from critical components to keep them at their optimal operating temperatures.

Industry-Leading Security Advanced security from ASUS Control Center Express to protect your data and system.

USB Port Management Enable or disable the USB port or set it to Read Only to prevent data leaks.

Software Blacklist A software blacklist is also available to prevent running of high-risk applications for IT security.

Registry Editor On/Off Remotely disable the Registry Editor on client devices to prevent unauthorized changes to system configurations for enhanced security.

ProArt Gives You More ProArt-exclusive software utilities deliver intuitive system monitoring, audio and networking enhancements that smooth your workflow.

Two-Way AI Noise Cancelation With working-from-home becoming the new normal, clear online communication is critical, even for content creators. Our latest audio utility leverages a massive deep-learning database to reduce background noise from the microphone and incoming audio. Distracting keyboard clatter, mouse clicks and other ambient noises are smartly pared back so you can hear and be heard with crystal clarity while in calls.

ProArt Creator Hub A user-friendly interface designed to enhance your workflow through central system monitoring and control of all connected ProArt Series products, including motherboards and displays. 1. Fan Mode Fan mode quickly configures your system's cooling by selecting the preferred fan setting. 2. Task Group Applications that are frequently used together can be arranged into groups and launched with a single click.

CreationFirst Network-optimization software allows you to prioritize applications in order to allocate more bandwidth to speed up essential apps and tasks. 1. Adaptive Intelligence Mode Intelligently prioritizes bandwidth of heavy-use applications by identifying in-use applications and using foreground acceleration. 2. Creation First Mode Allocates more bandwidth to active content-creation applications to optimize network traffic, making your workflow more efficient.

Trusted Stability ASUS ProArt B550-Creator is engineered and rigorously tested to offer superior quality, stability and compatibility to ensure that it empowers your creativity for years to come.

Weight & dimensions
Width 305 mm
Depth 244 mm
Maximum internal memory 128 GB
Supported memory clock speeds 2133,2400,2666,2800,3000,3200,3333,3466,3600,3733,3866,4000,4133,4266,4400,4466,4600,4800,4866,5100 MHz
Supported memory types DDR4-SDRAM
Memory channels Dual-channel
Memory slots type DIMM
Unbuffered memory Y
Number of memory slots 4
Compatible processor series AMD RyzenΓäó 3, AMD RyzenΓäó 5, AMD RyzenΓäó 7, 3rd Generation AMD RyzenΓäó 9, AMD Ryzen 9 5th Gen
Processor socket Socket AM4
Supported processor sockets Socket AM4
Processor manufacturer AMD
Rear panel I/O ports
PS/2 ports quantity 1
USB 2.0 ports quantity 2
Ethernet LAN (RJ-45) ports 2
Headphone outputs 5
Microphone in Y
S/PDIF out port Y
HDMI ports quantity 1
DisplayPorts quantity 1
HDMI version 2.1
Thunderbolt ports quantity 2
USB connector type USB Type-A, USB Type-C
USB 3.2 Gen 2 (3.1 Gen 2) Type-A ports quantity 4
Internal I/O
USB 2.0 connectors 2
CPU fan connector Y
Number of COM connectors 1
ATX Power connector (24-pin) Y
Number of chassis fan connectors 4
Front panel audio connector Y
TPM connector Y
USB 3.2 Gen 1 (3.1 Gen 1) connectors 2
Number of SATA III connectors 4
EPS power connector (8-pin) Y
Thunderbolt headers 2
Audio connector Y
Front panel connector Y
12V power connector Y
RGB LED pin header Y
LAN controller Intel I225-V
Wake-on-LAN ready Y
Ethernet interface type 2.5 Gigabit Ethernet
Ethernet LAN Y
Wi-Fi N
Expansion slots
PCI Express x1 (Gen 3.x) slots 1
PCI Express x16 (Gen 3.x) slots 1
Number of M.2 (M) slots 2
PCI Express x16 (Gen 4.x) slots 2
Packaging content
Cables included SATA
Drivers included Y
BIOS memory size 256 Mbit
Clear CMOS jumper Y
Parallel processing technology support Not supported
Motherboard form factor ATX
Motherboard chipset AMD B550
Audio output channels 7.1 channels
Motherboard chipset family AMD
Component for PC
Windows operating systems supported Windows 10 x64
Audio chip SupremeFX S1220A
Storage controllers
RAID levels 0, 1, 10
Supported storage drive types HDD & SSD
Supported storage drive interfaces M.2, PCI Express 3.0, PCI Express 4.0, SATA III
Number of storage drives supported 6
RAID support Y


More Information
Manufacturer ASUS
