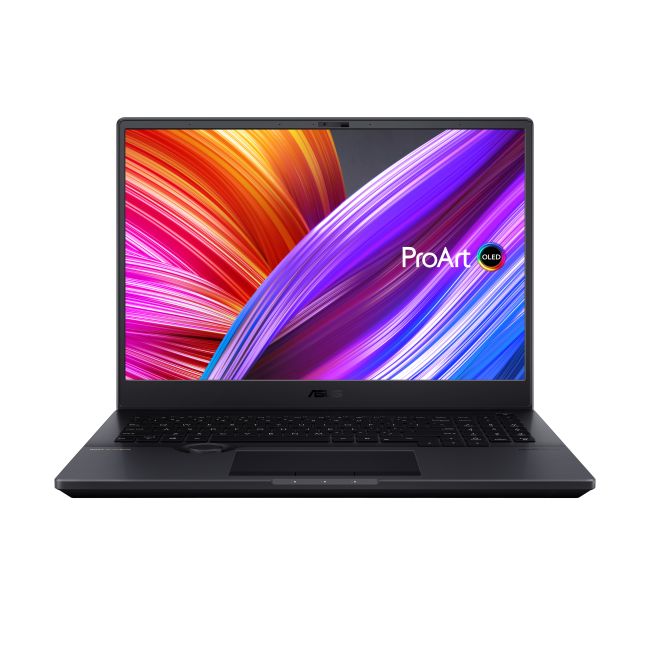

ASUS ProArt StudioBook 16 OLED H7600ZW-DB76 i7-12700H Notebook 40.6 cm (16") WQUXGA Intel® Core™ i7 16 GB DDR5-SDRAM 2000 GB SSD NVIDIA GeForce RTX 3070 Ti Wi-Fi 6 (802.11ax) Windows 11 Home Black

Born for Creative Pros Turn your creative vision into reality with the ProArt Studiobook 16 OLED studio laptop: it pushes every boundary to give you the effortless creative experience you’ve always wanted, but never thought possible. With a certified color-accurate 16-inch 4K OLED HDR 16:10 display, up to a breathtakingly powerful Intel® Core™ i9 processor, fast NVIDIA® GeForce RTX™ 3060 graphics, huge amounts of memory, advanced ultrafast storage, superb I/O connectivity, and ultra-precise fingertip control over your creative apps with the groundbreaking new ASUS Dial, ProArt Studiobook 16 OLED is simply the best creator laptop we’ve ever made. PERFORMANCE Performance for professionals ProArt Studiobook 16 OLED was designed with one goal in mind: to give you all the raw performance you need to handle even the toughest, most resource-hungry projects. It’s equipped with up to a mighty Intel Core i9 processor, fast NVIDIA GeForce RTX 3060 graphics, one of the world’s fastest SSDs, and has a flexible memory configuration with up to a massive 64 GB of high-speed RAM. It’s the ultimate professional laptop, built for the ultimate professional. CPU Fire up your imagination ProArt Studiobook 16 OLED is powered by up to an Intel Core i9 11900H processor, an eight-core processor that takes your creativity to another level, with the fastest ever performance that enables super-smooth and responsive multitasking. ProArt Studiobook 16 OLED can easily handle complex multithreaded applications, multi-layered video editing, and 3D rendering. Performance mode delivers even more performance by automatically increasing the CPU power limit value from 45 to 75 W sustained, or 95 W temporarily, adjusting the fan speed setting as needed for maximum performance. GPU Fast graphics, stable drivers Fast 3D graphics processing power is provided by NVIDIA GeForce RTX 3060 GPU, which is based on the NVIDIA Ampere architecture, NVIDIA’s second-generation of RTX technology. Whether you’re working on complex 3D scenes, high resolution video, or high-quality livestreaming, ProArt Studiobook 16 OLED is more than equal to the task thanks to the advanced features in the GPU including ray tracing and AI acceleration and fast GDDR6 memory, along with the ability to increase GPU power from 80 W to 110 W, adjusting the system fan speed as needed for optimum performance. For outstanding driver stability, we use NVIDIA Studio Drivers to ensure maximum performance, rock-solid reliability, and wide software compatibility. THERMAL It’s cool to be quiet Keeping a powerhouse like ProArt Studiobook 16 OLED cool is vital for top performance. The ASUS IceCool Pro cooling system incorporates liquid metal thermal compound to maximize CPU heat dissipation, so the CPU runs up to 7°C lower at 80 W TDP than with standard thermal grease, and delivers a 12.4% performance boost at a CPU temperature of 85°C. The result is that the mighty Intel CPU can run comfortably at a blistering 135 watts total TDP (45 W CPU and 90 W GPU) in Performance mode — with less noise, lower temperatures, and with no CPU throttling. This remarkable feat of engineering also uses dual 102-aerofoil blade fans, the world’s first to use over 100 blades3. The slim aerofoil blades are made from side-chain liquid crystal epoxy polymer (SCP): the quiet, power-efficient 3D-curved design increases airflow by 16%4. Six heat pipes and seven intelligent sensors ensure optimum cooling performance, while keeping everything quiet — under 40 dBA in Normal mode — so you can concentrate on the task at hand without distractions. In addition, ProArt Studiobook 16 OLED features NVIDIA's AI-powered WhisperMode 2.0, which gives you even more control over the laptop's fans so you can balance performance and acoustics. ASUS OLED DISPLAY World’s first 16” 4K OLED HDR 16:10 display5 Your creations demand visual perfection, and ProArt Studiobook 16 OLED delivers it with a 4K OLED HDR6 display that’s in a class of its own. This display delivers truly photorealistic visuals that are VESA DisplayHDR™ 500 True Black certified for ultra-high contrast and deep blacks, and the 100% DCI-P3 industry-standard color gamut ensures you’re seeing as many vivid, true-to-life colors as possible. For delivering precise color accuracy, this remarkable display is Calman verified, PANTONE® Validated, and has a Delta-E color-accuracy value of less than 27. ProArt Studiobook 16 OLED is also easier on your eyes for those long late-night sessions, with 70% lower blue-light emissions compared to LCD models, and it’s certified for eye care by TÜV Rheinland. DIAL Make magic happen with ASUS Dial Discover new ways to work with the brand-new and exclusive ASUS Dial, an intuitive physical controller that gives you instant and precise fingertip control over parameters in your creative apps. You can easily change brush size, change saturation, adjust layer opacity, or rapidly undo actions. You can also adjust screen brightness and volume, or vertical scroll to make your creative workflow smoother. There are over 70 functions available to help smooth your creative workflow. ASUS Dial is currently compatible with four Adobe apps: Adobe Photoshop, Premiere Pro, Photoshop Lightroom Classic, and After Effects. It’s fully customizable — and there are more compatible apps on the way! PROART CREATOR HUB Power up your imagination ProArt Creator Hub features an overview dashboard, and allows you switch to different performance modes, calibrate your screen color, or customize your ASUS Dial. It’s a personal portal where you can monitor your laptop’s status, personalize settings, or optimize your workflow. You can also personalize your ASUS Dial for your preferred features, or setup the Customized Keys in Control Settings for endless creativity. EXPERIENCE Thoughtful, innovative design To streamline your creative workflows, your laptop needs to be an extension of yourself. ProArt Studiobook 16 OLED incorporates several hardware features specially crafted for creators, to give you intuitive, precise control over every action. 3-button touchpad The three-button touchpad is specifically designed for 3D designers who need a middle button to control special application functions — such as pan, rotate or orbit. And when combined with the nearby ASUS Dial, it’s a dream team for creators looking for the ultimate in precision control. Customized keys To add even more interactivity, the two customized keys on ProArt Studiobook 16 OLED’s keyboard can be assigned to your favorite functions via the ProArt Creator Hub, saving time and effort and keeping you focused on your work. Touchpad stylus support The oversized touchpad supports up to 1024 pressure levels for use with a stylus, giving you natural-feeling input for drawing or writing. CONNECTIVITY All the right connections With a full complement of I/O ports, connecting your ProArt Studiobook 16 OLED to your studio peripherals, display devices and networks is easy. There is a Thunderbolt™ 4 USB-C® port, a USB 3.2 Gen 2 Type-C® port, with Power Delivery, DisplayPort and VR support, a standard RJ45 Gigabit Ethernet LAN port, the latest HDMI® 2.1 port, and an SD Express 7.0 card reader that puts your connectivity leagues ahead of the pack. ProArt Studiobook 16 OLED also includes WiFi 6 (802.11ax), so you can easily connect, create and share on the go. HDMI 2.1 Support for the very latest HDMI 2.1 standard means you can push high-resolution content to external high-res displays at resolutions of up to 8K / 120 Hz, making ProArt Studiobook 16 OLED the perfect choice for today’s visual creators. SD EXPRESS 7.0 With SD Express 7.0 card reader, ProArt Studiobook 16 OLED is primed and ready for the fastest ever SD Express cards. Supporting speeds of up to 985 MB/s, these are nearly 10x faster than the original SD cards, making it easier and quicker than ever to transfer large files between your devices. AUDIO Break the sound barrier Sound by Harman Kardon and DTS® The audio experts at Harman Kardon have certified that the finely tuned audio system meets their exacting standards, and DTS® technology delivers an amazing multi-channel sound experience, from any kind of source material. The volume-enhancing, distortion-suppressing dual-channel smart amplifier can drive the twin speakers at the maximum volume possible while preventing long-term damage to the sensitive voice coils of the speakers. Creating or listening to audio in your videos, movies, music or games has never sounded better! High fidelity, higher standards Bring your music and audio to life with the audiophile-grade ESS® SABRE DAC, featuring Hi-Res Audio certification for the highest possible audio playback quality and the ability to drive the world’s most sophisticated high-impedance headphones. The expanded dynamic range and lower distortion lets you enjoy richer, clearer highs and deeper bass, so you can immerse yourself in virtual 7.1-channel surround sound. ANTI-FINGERPRINT COATING Looks like new, always A high-tech anti-fingerprint nano-coating preserves the clean and minimalist matte Star Black finish of your ProArt Studiobook 16 OLED. This coating is not only tough and durable, but it also reduces reflectivity and gives your laptop a premium silky feel. Any water on the surface can simply be wiped off, thanks to the water-beading properties of the coating. QUALITY TEST Ultratough, military-grade durability ProArt Studiobook 16 OLED meets the ultra-demanding MIL-STD 810H military standard for reliability and durability, undergoing a punishing test regime that includes extended tests for operation in harsh environments. It also passes ASUS laptop tests that far exceed standards set by the industry.

Display
Display diagonal	40.6 cm (16")
Display resolution	3840 x 2400 pixels
Contrast ratio (typical)	1000000:1
Touchscreen	N
Panel type	OLED
Display surface	Gloss
HD type	WQUXGA
Maximum refresh rate	60 Hz
High Dynamic Range (HDR) technology	HDR True Black 600
RGB colour space	DCI-P3
Colour gamut	100%
Native aspect ratio	16:10
High Dynamic Range (HDR) supported	Y
Maximum display brightness (HDR)	600 cd/m┬▓
Processor
Processor model	i7-12700H
Processor manufacturer	Intel
Processor family	Intel® Core™ i7
Processor cores	14
Processor cache	24 MB
Configurable TDP-down	35 W
Processor generation	12th gen Intel® Core™ i7
Ports & interfaces
Ethernet LAN (RJ-45) ports	1
HDMI ports quantity	1
HDMI version	2.1
Combo headphone/mic port	Y
USB 3.2 Gen 2 (3.1 Gen 2) Type-A ports quantity	2
USB Type-C DisplayPort Alternate Mode	Y
USB Power Delivery	Y
Charging port type	DC-in jack
Thunderbolt 4 ports quantity	2
Intel® Thunderbolt 4	Y
Power adapter barrel connector	6.0 mm
Memory
Maximum internal memory	64 GB
Internal memory type	DDR5-SDRAM
Memory layout (slots x size)	1 x 16 GB
Internal memory	16 GB
Memory form factor	SO-DIMM
Weight & dimensions
Weight	2.4 kg
Depth	264 mm
Width	362 mm
Height (front)	1.99 cm
Height (rear)	2.14 cm
Power
AC adapter input voltage	100 - 240 V
AC adapter frequency	50 - 60 Hz
AC adapter output voltage	20 V
AC adapter output current	12 A
AC adapter power	240 W
Audio
Audio system	Smart Amp
Built-in microphone	Y
Speakers manufacturer	Harman Kardon
Keyboard
Pointing device	Touchpad
Numeric keypad	Y
Keyboard backlit	Y
Network
Wi-Fi standards	Wi-Fi 6 (802.11ax)
Bluetooth	Y
Bluetooth version	5.2
Ethernet LAN	Y
Top Wi-Fi standard	Wi-Fi 6 (802.11ax)
Antenna type	2x2
Mobile network connection	N
Security
Cable lock slot	Y
Trusted Platform Module (TPM)	Y
Fingerprint reader	Y
Password protection type	BIOS, HDD, User
Password protection	Y
Windows Hello	Y
Trusted Platform Module (TPM) version	2.0
Software
Operating system installed	Windows 11 Home
Trial software	1-month trial for new Microsoft 365 customers. Credit card required.
Operating system architecture	64-bit
Camera
Front camera	Y
Privacy camera	Y
Privacy type	Privacy shutter
Front camera HD type	HD
Infrared (IR) camera	Y
Storage
Optical drive type	N
Compatible memory cards	SD
Card reader integrated	Y
SSD interface	PCI Express 4.0
SSD capacity	1000 GB
Total storage capacity	2000 GB
Number of SSDs installed	2
Storage media	SSD
SSD form factor	M.2
Total SSDs capacity	2000 GB
NVMe	Y
Battery
Battery technology	Lithium-Ion (Li-Ion)
Number of battery cells	4
Battery capacity	90 Wh
Graphics
Discrete graphics card model	NVIDIA GeForce RTX 3070 Ti
Discrete graphics memory type	GDDR6
On-board graphics card model	Intel Iris Xe Graphics
On-board graphics card	Y
Discrete graphics card memory	8 GB
Discrete graphics card	Y
Discrete GPU manufacturer	NVIDIA
Processor special features
Intel Flex Memory Access	Y
Intel Trusted Execution Technology	Y
Intel VT-x with Extended Page Tables (EPT)	Y
Execute Disable Bit	Y
CPU configuration (max)	1
Embedded options available	N
Intel Virtualization Technology for Directed I/O (VT-d)	Y
Intel Virtualization Technology (VT-x)	Y
Design
Form factor	Clamshell
Product colour	Black
Product type	Notebook
Colour name	Mineral Black
Performance
Virtual Reality (VR) ready	Y
Packaging content
Bag included	Y
