PCIe Dual Serial Port Card TAA

Pro DP10 13M-021US

$1,273.50

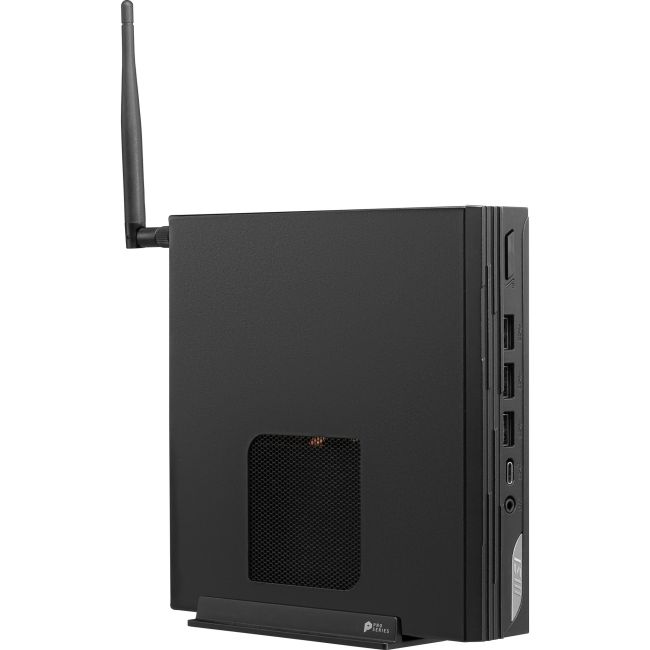

MSI Pro DP10 13M-021US, 1.1L sized PC, Mini PC barebone, Intel SoC, Ethernet LAN, Wi-Fi 6E (802.11ax), 120 W
Availability:
In stock
SKU
imHT2796
Resilient and Pioneering Spirit of Your Business
Your business should be empowered to stop at nothing while navigating your journey with the MSI Business & Productivity Series products.

Compact yet Powerful Business Center
Take a huge leap in performance and experience a boosted and faster rendering for the applications in this compact yet powerful business center that you work everyday.

The Way to Empower Your Business
Equips up to 13th Gen Intel® Core™ i7 processor with 12 cores and 16 threads, delivering computing capability and keeping you in the flow wherever you go.

Also, enjoy a more detailed, immersive viewing experience with Intel® Iris® Xe Graphics.

Bolt To The Next Power with Built-in Thunderbolt 4
Thunderbolt™ 4* brings Thunderbolt to USB-C at speeds up to 40 Gbps, creating one compact port that does it all – delivering the fastest, most versatile connection to any dock, display, or data device & NAS.

Embracing a wide array of interface compatibilities so that you can edit, collaborate and share seamlessly

Up to 4 Displays with Thunderbolt
With one Thunderbolt, one DP-out, one HDMI™-out, and a VGA port (D-sub), PRO DP10 Series allows you to extend up to 4 monitors to pre-view your programming, E-commerce content & data at home or in the office.

Reversible Type-C With USB 3.2 Gen 2
When backup your projects at home, you can get all the performance benefits from USB 3.2 Gen 2, combined with the convenience of the reversible USB Type-C connector port.

Connect All of Your Devices with Wi-Fi 6E
Wi-Fi 6E puts more emphasis on transmission security and improves the signal between the interference problem can also be connected to more devices simultaneously, thereby meeting the trend of higher and higher data transmission bandwidth requirements with speeds up to 2.4Gbps.

Transfer Files & Work with 2.5G LAN
Connect and rapidly transfer data over a network with the high-bandwidth and low-latency 2.5Gbps Ethernet LAN.

MSI Cloud Center
Fast, Secure & Wireless Backup
Fast, secure, and wireless backup & download between your PC and mobile devices. Transfer files, photos, videos, and more between your PC, Android, and iOS device faster and easier than a cabled connection. You can make these files accessible to your family or team members, or you can also make files as private as you want. The decision is in your hands.

MSI Center App
The MSI Center takes optimization to the next level with customizable UI that avoid unnecessary workload for your system and easily adjustable system modes; it helps to prioritize & allocate the resource on your hand and accelerate the performance of the software which you work with every day.

Hardware TPM Module Support
Hardware TPM (Trusted Platform Module) module is designed to provide hardware-based, security-related functions.You can store your sensitive data & passwords by encryption keys for advanced security.

Kensington Lock with Padlock Combo Design
Protect the unit with a physical Kensington Lock with Padlock Combo Design.

VESA Mountable with External Power Switch Design
The VESA Mountable design allows you to hook up PRO DP10 anywhere you like, improving its flexibility and letting users have good space management at home or office.

The external power switch brings the most convenient way to turn it on.

Easy To Maintenance Design
Users can easily upgrade two M.2 SSD, one 2.5” HDD/SSD, and two SO-DIMMs by disassembling the side covers.

Make PRO DP10 an even more flexible desktop and reduce the time wasted on upgrading.

Successful & Stylish B2B projects
Over the past years, MSI has successfully supported Countless of commercial projects, including government tenders, restaurant & hotel facilitation, shopping mall navigation projects, school & university developments and professional office projects.

More Information
Short Description MSI Pro DP10 13M-021US, 1.1L sized PC, Mini PC barebone, Intel SoC, Ethernet LAN, Wi-Fi 6E (802.11ax), 120 W
Description Resilient and Pioneering Spirit of Your Business
Your business should be empowered to stop at nothing while navigating your journey with the MSI Business & Productivity Series products.

Compact yet Powerful Business Center
Take a huge leap in performance and experience a boosted and faster rendering for the applications in this compact yet powerful business center that you work everyday.

The Way to Empower Your Business
Equips up to 13th Gen Intel® Core™ i7 processor with 12 cores and 16 threads, delivering computing capability and keeping you in the flow wherever you go.

Also, enjoy a more detailed, immersive viewing experience with Intel® Iris® Xe Graphics.

Bolt To The Next Power with Built-in Thunderbolt 4
Thunderbolt™ 4* brings Thunderbolt to USB-C at speeds up to 40 Gbps, creating one compact port that does it all – delivering the fastest, most versatile connection to any dock, display, or data device & NAS.

Embracing a wide array of interface compatibilities so that you can edit, collaborate and share seamlessly

Up to 4 Displays with Thunderbolt
With one Thunderbolt, one DP-out, one HDMI™-out, and a VGA port (D-sub), PRO DP10 Series allows you to extend up to 4 monitors to pre-view your programming, E-commerce content & data at home or in the office.

Reversible Type-C With USB 3.2 Gen 2
When backup your projects at home, you can get all the performance benefits from USB 3.2 Gen 2, combined with the convenience of the reversible USB Type-C connector port.

Connect All of Your Devices with Wi-Fi 6E
Wi-Fi 6E puts more emphasis on transmission security and improves the signal between the interference problem can also be connected to more devices simultaneously, thereby meeting the trend of higher and higher data transmission bandwidth requirements with speeds up to 2.4Gbps.

Transfer Files & Work with 2.5G LAN
Connect and rapidly transfer data over a network with the high-bandwidth and low-latency 2.5Gbps Ethernet LAN.

MSI Cloud Center
Fast, Secure & Wireless Backup
Fast, secure, and wireless backup & download between your PC and mobile devices. Transfer files, photos, videos, and more between your PC, Android, and iOS device faster and easier than a cabled connection. You can make these files accessible to your family or team members, or you can also make files as private as you want. The decision is in your hands.

MSI Center App
The MSI Center takes optimization to the next level with customizable UI that avoid unnecessary workload for your system and easily adjustable system modes; it helps to prioritize & allocate the resource on your hand and accelerate the performance of the software which you work with every day.

Hardware TPM Module Support
Hardware TPM (Trusted Platform Module) module is designed to provide hardware-based, security-related functions.You can store your sensitive data & passwords by encryption keys for advanced security.

Kensington Lock with Padlock Combo Design
Protect the unit with a physical Kensington Lock with Padlock Combo Design.

VESA Mountable with External Power Switch Design
The VESA Mountable design allows you to hook up PRO DP10 anywhere you like, improving its flexibility and letting users have good space management at home or office.

The external power switch brings the most convenient way to turn it on.

Easy To Maintenance Design
Users can easily upgrade two M.2 SSD, one 2.5” HDD/SSD, and two SO-DIMMs by disassembling the side covers.

Make PRO DP10 an even more flexible desktop and reduce the time wasted on upgrading.

Successful & Stylish B2B projects
Over the past years, MSI has successfully supported Countless of commercial projects, including government tenders, restaurant & hotel facilitation, shopping mall navigation projects, school & university developments and professional office projects.

gtin 0000000000000
upc 0824142322970
Write Your Own Review
You're reviewing:Pro DP10 13M-021US

Processor

Processor manufacturer
Intel
Processor family
Intel® Core™ i7
Processor generation
13th gen Intel® Core™ i7
Processor model
i7-1360P
Processor cores
12
Processor threads
16
Processor boost frequency
5 GHz
Performance cores
4
Efficient cores
8
Built-in processor*
Yes
Processor cache
18 MB

Memory

Maximum internal memory
64 GB

Storage

Supported storage drive types*
HDD & SSD
Storage drive sizes supported*
2.5"

Graphics

On-board graphics card*
Yes
Graphics card family
Intel
On-board graphics card model
Intel UHD Graphics 770

Network

Top Wi-Fi standard
Wi-Fi 6E (802.11ax)
Wi-Fi standards
Wi-Fi 6E (802.11ax)
WLAN controller model
Intel Wi-Fi 6E AX211
Ethernet LAN*
Yes
Wi-Fi*
Yes
Bluetooth
Yes
Bluetooth version
5.3

Ports & interfaces

USB 2.0 ports quantity*
2
USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity*
4
USB 3.2 Gen 2 (3.1 Gen 2) Type-A ports quantity
1
HDMI ports quantity*
1

Ports & interfaces

DisplayPorts quantity
1
Microphone in
Yes
Headphone outputs
1
Combo headphone/mic port
Yes
Ethernet LAN (RJ-45) ports*
1
Thunderbolt 4 ports quantity
1

Design

Chassis type*
1.1L sized PC
Product colour*
Black
VESA mounting
Yes
Product type*
Mini PC barebone
Market positioning
Business

Performance

Motherboard chipset
Intel SoC
Optical drive type
No

Software

Operating system installed
No

Power

Power supply type*
External AC adapter
Power supply
120 W

Weight & dimensions

Width
178.8 mm
Depth
34.5 mm
Height
179 mm
Weight
1.1 kg
Package width
530 mm
Package depth
320 mm
Package height
530 mm
Package weight
2.1 kg

Packaging content

Display included
No
