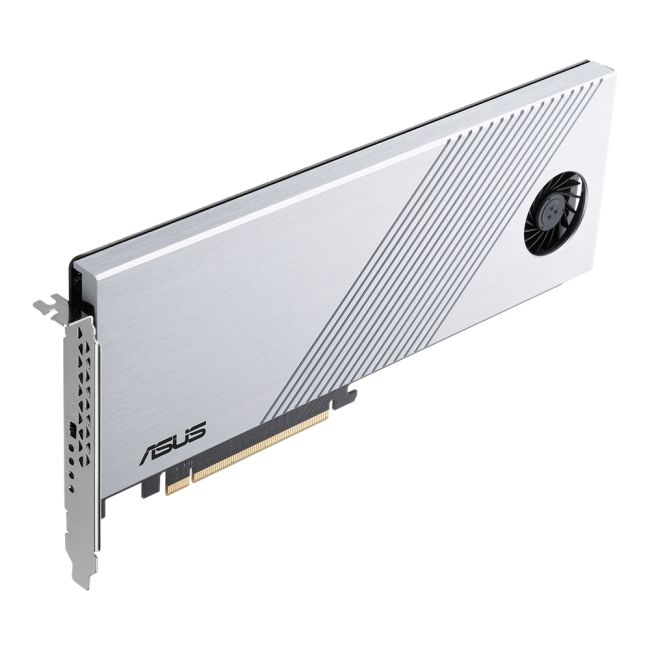

ASUS Hyper M.2 x16 Gen 4 interface cards/adapter Internal

$85.96
PCIe 4.0/3.0 x16, Up to 4 x M.2, 1 x M.2 FAN Power Switch, 4 x M.2 access LEDs
Availability:
In stock
SKU
DHHYPERM2X16CARD4
ASUS Hyper M.2 x16 Gen 4 Card (PCIe 4.0/3.0) supports four NVMe M.2 (2242/2260/2280/22110) devices up to 256 Gbps for AMD TRX40/X570 PCIe 4.0 NVMe RAID and Intel platform RAID-on-CPU functions RAID on CPU The ASUS Hyper M.2 x16 Gen 4 Card is compatible with the Intel X299, Z390, Z370 and future platforms' RAID-on-CPU function, and supports PCIe 4.0 NVMe RAID on the AMD TRX40 and X570 platforms. Unused CPU PCle lanes can be assigned to storage, allowing you to create a bootable RAID array with up to four M.2 SSDs. One card, 8X the bandwidth The ASUS Hyper M.2 x16 Gen 4 Card uses PCIe 4.0, which doubles the bandwidth per lane compared to PCIe 3.0. With four M.2 slots, it offers up to 256 Gbps of bandwidth per card, 8X the bandwidth of a single PCIe 3.0 drive. Design for unthrottled transfer speed The ASUS Hyper M.2 x16 Gen 4 Card has four M.2 slots — supporting both PCIe 3.0 and 4.0 — that allow you to expand your system with high-performance SSD storage. Designed for the latest generation of NVMe drives, the card features an upgraded power supply that provides up to 14W of power per drive, as well as a large heatsink and active fan to ensure that drives stay cool for optimum performance.
Ports & interfaces
Host interface PCIe
Output interface M.2
Expansion card standard PCIe 4.0
Weight & dimensions
Width 270 mm
Depth 122 mm
Height 15 mm
Design
Internal Y
Product colour Silver
Purpose PC
Cooling type Active
Number of fans 1 fan(s)
Number of expansion slots 4
LED indicators Access
Easy to install Y
Packaging data
Quantity 1
Package type Box
Features
Data transfer rate (max) 256 Gbit/s
Harmonized System (HS) code 84733020

More Information
Manufacturer ASUS
prop 65 warning WARNING: Cancer and Reproductive Harm - www.P65Warnings.ca.gov.
